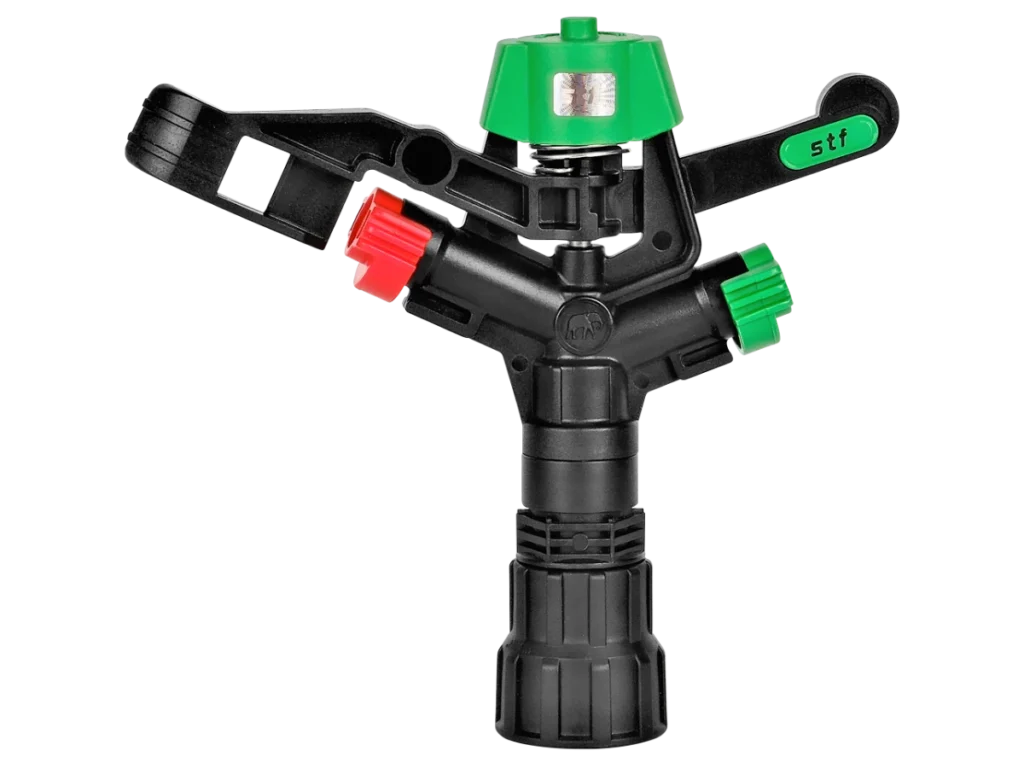

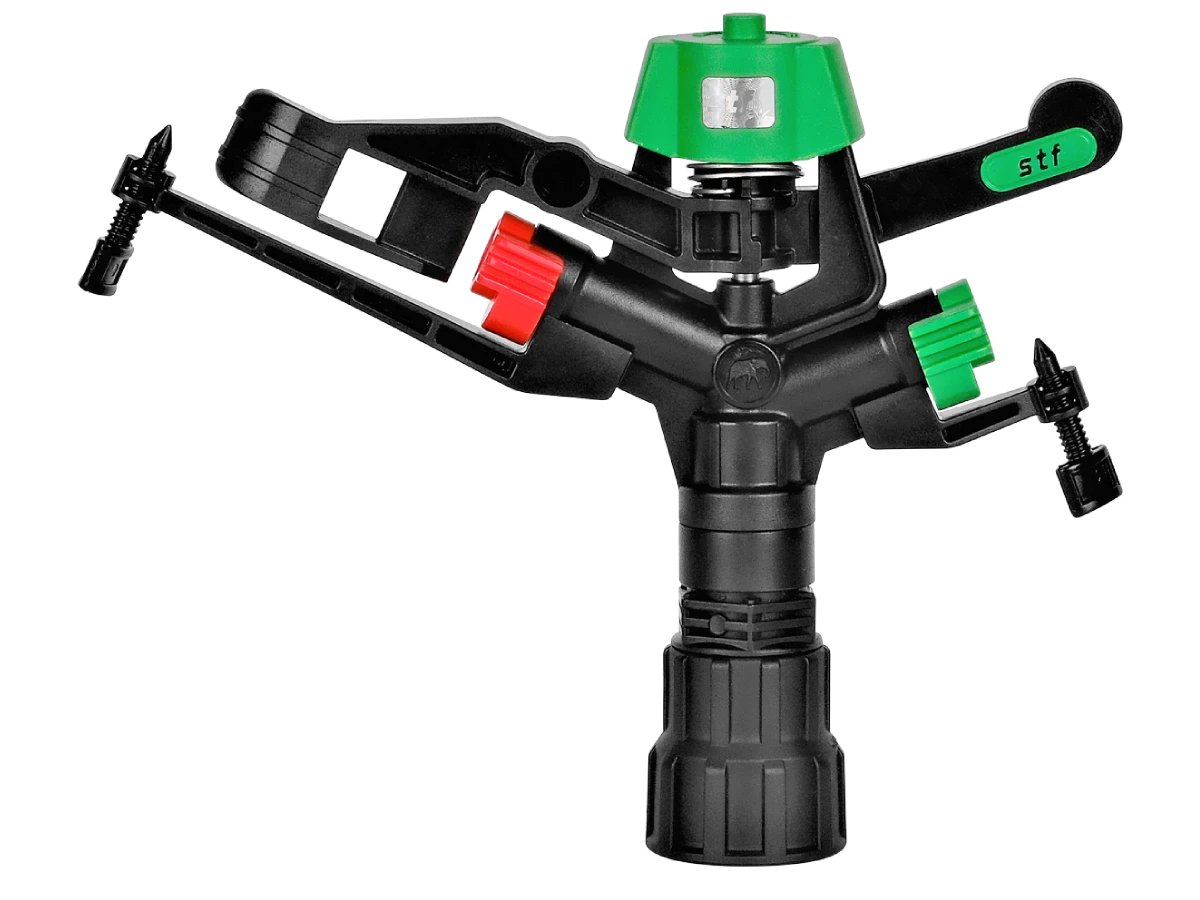

S17 K Sprinkler

S17-K Sprink

S 17 K Much More Powerful

It has a design that ensures homogeneous water distribution up to a radius of 12 m and high resistance to wind in full circle irrigation.

Providing superior protection against UV rays and impacts, it offers a long-lasting and reliable use.

Union svg STF

S17 K is with you for years with its durable structure!

Technical Data

Constructed from robust plastic and stainless materials, it provides high resistance to harsh outdoor conditions, extreme temperatures and chemicals.

s17 k noozles 1024x551 1 STF

It offers ease of use in projects with different nozzle options.

Code Nozzle Diameter (mm) Andrage Flow Rate(L/H) Box Box
Dimensions
(W-D-H)
2,5 Bar 3,0 Bar 3,5 Bar
S17-K-1 3,8 x 2,5 1293 1418 1532 40 43-33-27
S17-K-2 4,5 x 3,5 1908 2085 2252 40 43-33-27
S17-K-3 5,0 x 3,8 2335 2554 2762 40 43-33-27
S17-K-4 5,5 x 4,0 2596 2846 3075 40 43-33-27
Ekran Resmi 2025 01 04 23.24.34 min STF

Shapes Water, Gives Life to Soil!

  • The above data are for sprinkler breaker screws in full open position in a windless environment.
  • A homogeneous irrigation, the minimum working pressure in sprinklers should be 2.5 bar.

Application Range

Nozzle (mm) Pressure (Bar) Flow Rate (L/H) Diameter (m) AxB - (mm/h)
10x10 10x12 12x12 10x15
2,5 1293 23 12,9 10,8 9,0 8,6
3,8 x 2,5 3,0 1418 24 14,2 11,8 9,8 9,5
3,5 1532 25 15,3 12,8 10,6 10,2
2,5 1908 23 19,1 15,9 13,3 12,7
4,5 x 3,5 3,0 2085 24 20,9 17,3 14,5 13,9
3,5 2252 25 22,5 18,8 15,6 15,0
2,5 2335 23 23,4 19,5 16,2 15,6
5,0 x 3,8 3,0 2554 24 25,5 21,3 17,7 17,0
3,5 2762 25 27,6 23,0 19,2 18,4
2,5 2596 23 26,0 21,6 18,0 17,3
5,5 x 4,0 3,0 2846 24 28,5 23,7 19,8 19,0
3,5 3075 25 30,8 25,6 21,4 20,5
