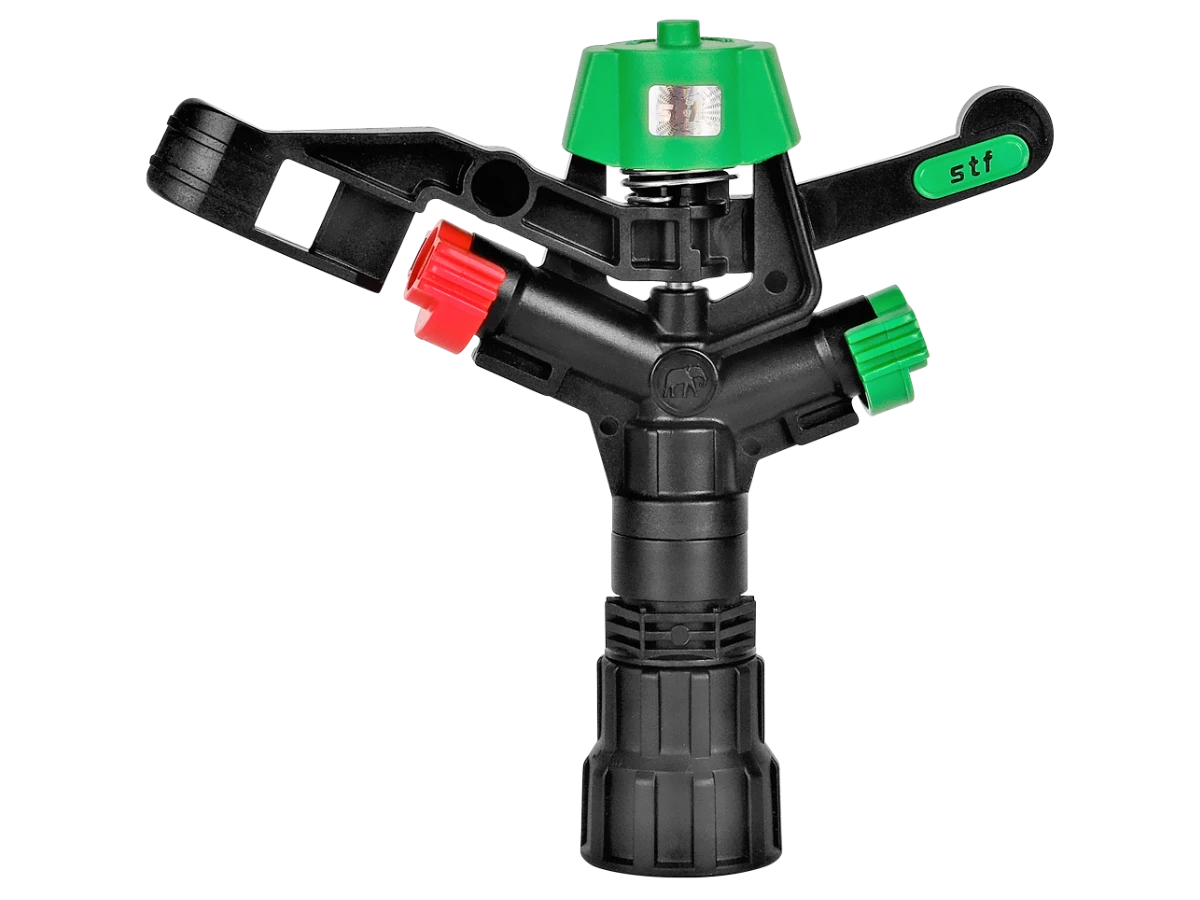

S17 Sprinkler

S 17 STF Revolution in Irrigation

It has a desig that ensures homogeneous water distribution up to a radius of 12 m and high resistance to wind in full circle irrigation.

Providing superior protection against UV rays and impacts, it offers a long-lasting and reliable use.

S17 is with you for years with its durable structure!

Technical Data

Constructed from durable plastic and stainless materials, it provides high durability against harsh outdoor conditions, extreme temperatures and chemicals.

It offers ease of use in projects with different nozzle options.

Code	Nozzle Diameter (mm)	Andrage Flow Rate(L/H)			Box	Box Dimensions (W-D-H)
Code	Nozzle Diameter (mm)	2,5 Bar	3,0 Bar	3,5 Bar	Box	Box Dimensions (W-D-H)
S17-1	3,8 x Oval	1324	1449	1564	50	43-33-27
S17-2	4,0 x Oval	1376	1511	1626	50	43-33-27
S17-3	4,5 x Oval	1605	1762	1897	50	43-33-27
S17-4	5,0 x Oval	1887	2064	2231	50	43-33-27
S17-5	5,5 x Oval	2126	2325	2502	50	43-33-27

Shapes Water, Gives Life to Soil!

The above data are for sprinkler breaker screws in full open position in a windless environment.
A homogeneous irrigation, the minimum working pressure in sprinklers should be 2.5 bar.

Application Range

Nozzle (mm)	Pressure (Bar)	Flow Rate (L/H)	Diameter (m)	AxB - (mm/h)
Nozzle (mm)	Pressure (Bar)	Flow Rate (L/H)	Diameter (m)	10x10	10x12	12x12	10x15
3,8 x Oval	2,5	1324	23	13,2	11,0	9,2	8,8
	3,0	1449	24	14,5	12,1	10,1	9,7
	3,5	1564	25	15,6	13,0	10,9	10,4

4,0 x Oval	2,5	1376	23	13,8	11,5	9,6	9,2
	3,0	1511	24	15,1	12,6	10,5	10,1
	3,5	1626	25	16,3	13,6	11,3	10,8

4,5 x Oval	2,5	1605	23	16,1	13,4	11,1	10,7
	3,0	1762	24	17,6	14,7	12,2	11,7
	3,5	1897	25	19,0	15,8	13,2	12,6

5,0 x Oval	2,5	1887	23	18,9	15,7	13,1	12,6
	3,0	2064	24	20,6	17,2	14,3	13,8
	3,5	2231	25	22,3	18,6	15,5	14,9

5,5 x Oval	2,5	2126	23	21,3	17,7	14,8	14,2
	3,0	2325	24	23,3	19,4	16,1	15,5
	3,5	2502	25	25,0	20,9	17,4	16,7
