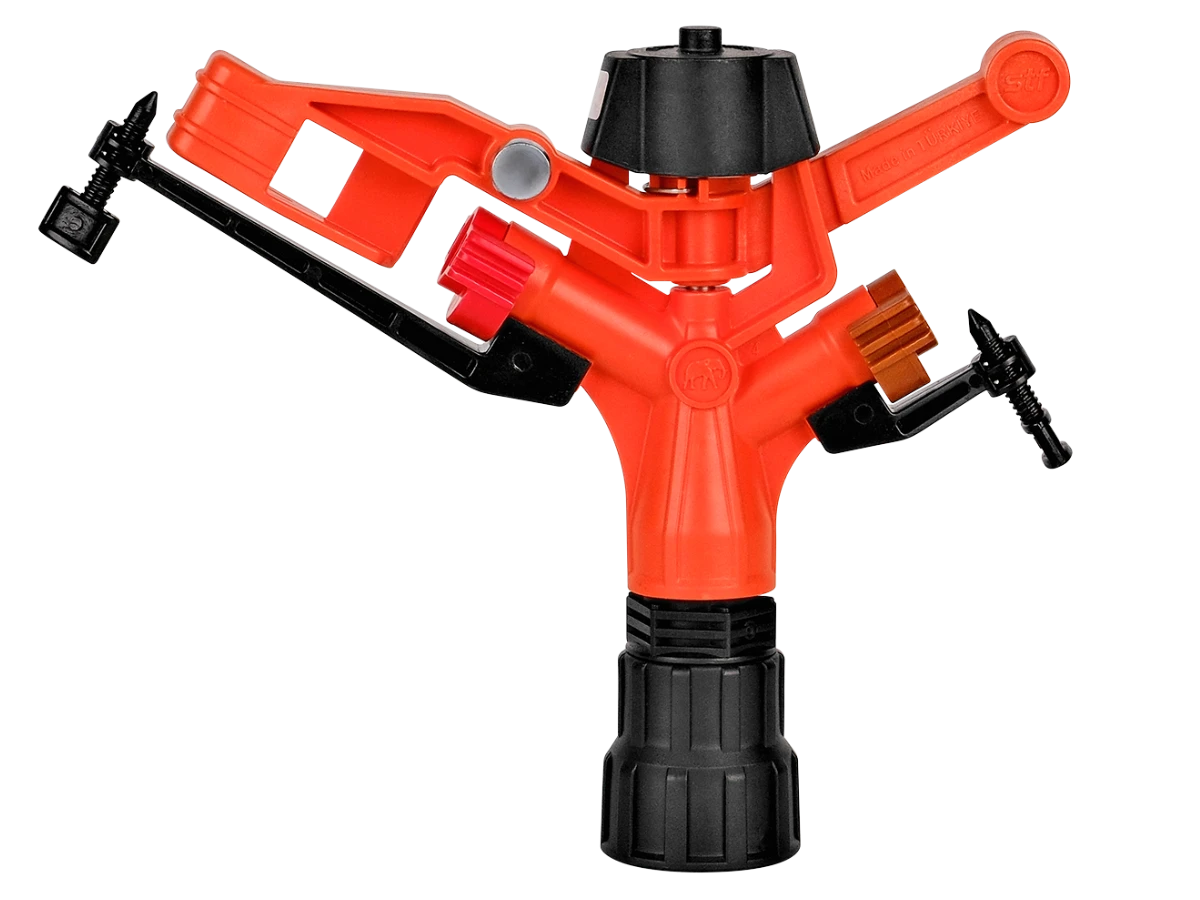

S16 Sprinkler

Years of Quality, Hassle-Free Irrigation

It has a design that ensures homogeneous water distribution up to a radius of 12 m and high resistance to wind in full circle irrigation.

Providing superior protection against UV rays and impacts, it offers a long-lasting and reliable use.

Constructed from robust plastic and stainless materials, it provides high resistance to harsh outdoor conditions, extreme temperatures and chemicals.

It offers ease of use in projects with different nozzle options.

Code	Nozzle Diameter (mm)	Aandrage Flow Rate (L/H)			Box	Box Dimensions (W-D-H)
Code	Nozzle Diameter (mm)	2,5 Bar	3,0 Bar	3,5 Bar	Box	Box Dimensions (W-D-H)
S16-1	3,8 x 2,3	1313	1439	1553	40	43-33-27
S16-2	4,5 x 2,3	1584	1730	1876	40	43-33-27
S16-3	4,5 x 3,2	1866	2054	2210	40	43-33-27
S16-4	5,0 x 3,2	2168	2366	2564	40	43-33-27
S16-5	5,0 x 3,8	2481	2710	2919	40	43-33-27
S16-6	5,0 x 4,2	2814	3096	3336	40	43-33-27

The above data are for sprinkler breaker screws in full open position in a windless environment.
A homogeneous irrigation, the minimum working pressure in sprinklers should be 2.5 bar.

Nozzle (mm)	Pressure (Bar)	Flow Rate (L/H)	Diameter (m)	AxB - (mm/h)
Nozzle (mm)	Pressure (Bar)	Flow Rate (L/H)	Diameter (m)	10x10	10x12	12x12	10x15
	2,5	1313	21	13,1	10,9	9,1	8,8
3,8 x 2,3	2,5	1439	22	14,4	12,0	10,0	9,6
	3,5	1553	23	15,5	12,9	10,8	10,4

	2,5	1584	21	15,8	13,2	11,0	10,6
4,5 x 2,3	3,0	1730	22	17,3	14,4	12,0	11,5
	3,5	1876	23	18,8	15,6	13,0	12,5

	2,5	1866	21	18,7	15,6	13,0	12,4
4,5 x 3,2	3,0	2054	22	20,5	17,1	14,3	13,7
	3,5	2210	23	22,1	18,4	15,3	14,7

	2,5	1866	21	21,7	18,1	15,1	14,5
5,0 x 3,2	3,0	2054	22	23,7	19,7	16,4	15,8
	3,5	2210	23	25,6	21,4	17,8	17,1

	2,5	2481	21	24,8	20,7	17,2	16,5
5,0 x 3,8	3,0	2710	22	27,1	22,6	18,8	18,1
	3,5	2919	23	29,2	24,3	20,3	19,5

	2,5	2814	21	28,1	23,5	19,5	18,8
5,0 x 4,2	3,0	3096	22	31,0	25,8	21,5	20,6
	3,5	3336	23	33,4	27,8	23,2	22,2
