What are the benefits of S15 sprinkler?
Exceptional design provides homogeneous water distribution up to a radius of 24 mt. and high resistance to wind in full circle irrigation.
Long lasting performance
It is made of plastic and stainless materials suitable for heavy outdoor conditions. It provides high resistance to chemicals, UV rays and impact.
Just like nature does!

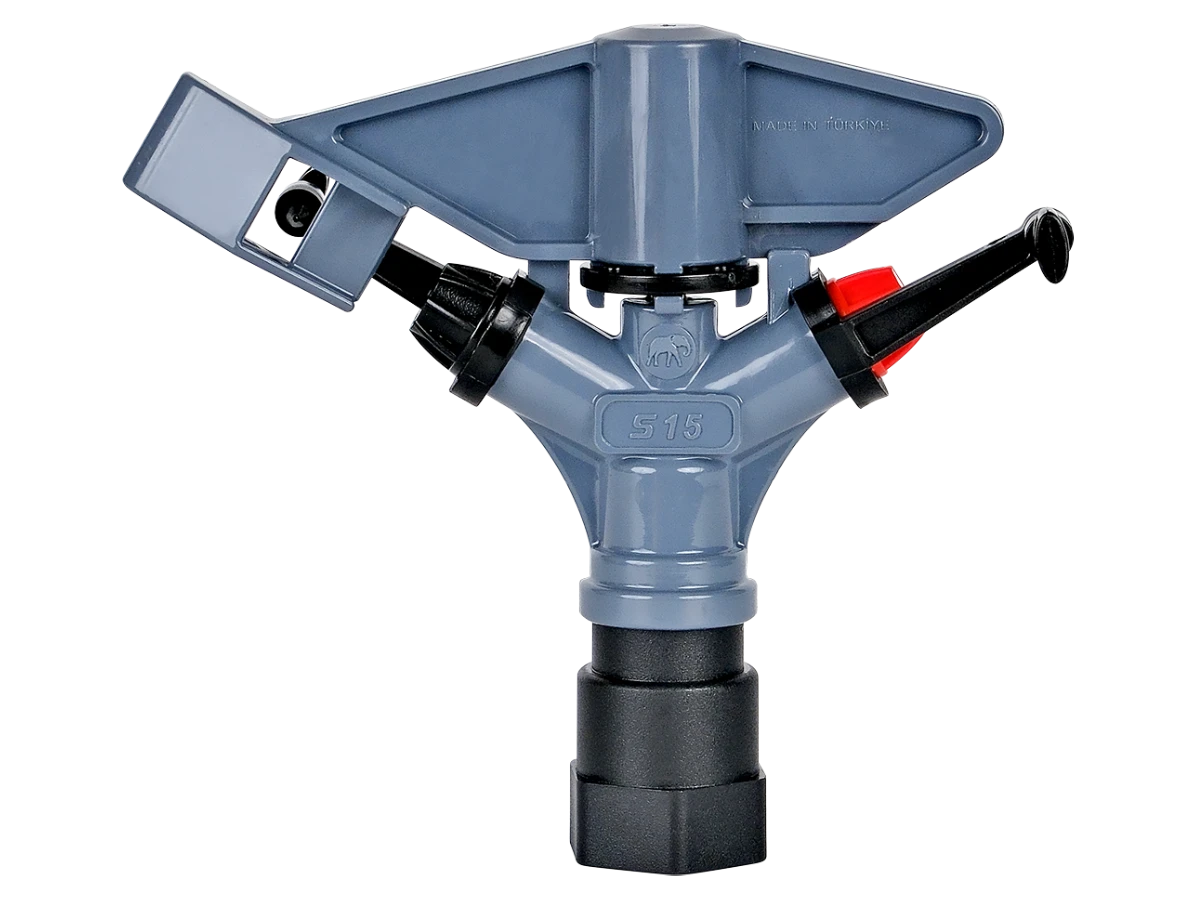

S15
The rhythm of the performance
• It offers ease of use in a wide range of projects with nozzle options suitable for different flow rates.
Technical specifications
| Code | Nozzle Dia (mm) | Approximate Flow Rate L/H | Pcs/Box | ||
| 2,5 Bar | 3,0 Bar | 3,5 Bar | |||
| S15-1 | 4,2 x 3,8 | 1610 | 1752 | 1902 | 35 |
| S15-2 | 5,0 x 4,0 | 2158 | 2366 | 2554 | 35 |
| S15-3 | 5,0 x 4,5 | 2377 | 2606 | 2814 | 35 |
| S15-4 | 6,0 x 4,0 | 2802 | 3049 | 3278 | 35 |
| S15-5 | 6,0 x 4,5 | 2943 | 3229 | 3506 | 35 |
| S15-6 | 6,0 x 5,0 | 3291 | 3603 | 3880 | 35 |
• The given data are in the fully open position of the Sprink breakers in a windless environment.
• Minimum operating pressure of the sprinkler is 2.5 bar for an efficient homogeneous irrigation.
Application range
| Nozzle (mm) | Pressure (Bar) | Flow Rate lt/h | Dia (m) | AxB - mm/h | |||
| 10X10 | 10X12 | 12X12 | 10X15 | ||||
| 4,2 x 3,8 | 2,5 | 1610 | 21 | 16,1 | 13,4 | 11,2 | 10,7 |
| 3,0 | 1752 | 22 | 17,5 | 14,6 | 12,2 | 11,7 | |
| 3,5 | 1902 | 23 | 19,0 | 15,9 | 13,2 | 12,7 | |
| 5,0 x 4,0 | 2,5 | 2158 | 21 | 21,6 | 18,0 | 15,4 | 14,4 |
| 3,0 | 2366 | 22 | 23,7 | 19,7 | 16,4 | 15,8 | |
| 3,5 | 2554 | 23 | 25,5 | 21,3 | 17,7 | 17,0 | |
| 5,0 x 4,5 | 2,5 | 2377 | 21 | 23,8 | 19,8 | 16,5 | 15,8 |
| 3,0 | 2606 | 22 | 26,1 | 21,7 | 18,1 | 17,4 | |
| 3,5 | 2814 | 23 | 28,1 | 23,5 | 19,5 | 18,8 | |
| 6,0 x 4,0 | 2,5 | 2802 | 21 | 28,0 | 23,4 | 19,5 | 18,7 |
| 3,0 | 3049 | 22 | 30,5 | 25,4 | 21,2 | 20,3 | |
| 3,5 | 3278 | 23 | 32,8 | 27,3 | 22,8 | 21,9 | |
| 6,0 x 4,5 | 2,5 | 2943 | 21 | 29,4 | 24,5 | 20,4 | 19,6 |
| 3,0 | 3229 | 22 | 32,3 | 26,9 | 22,4 | 21,5 | |
| 3,5 | 3506 | 23 | 35,1 | 29,2 | 24,3 | 23,4 | |
| 6,0 x 5,0 | 2,5 | 3291 | 21 | 32,9 | 27,4 | 22,9 | 21,9 |
| 3,0 | 3603 | 22 | 36,0 | 30,0 | 25,0 | 24,0 | |
| 3,5 | 3880 | 23 | 38,8 | 32,3 | 26,9 | 25,9 | |
