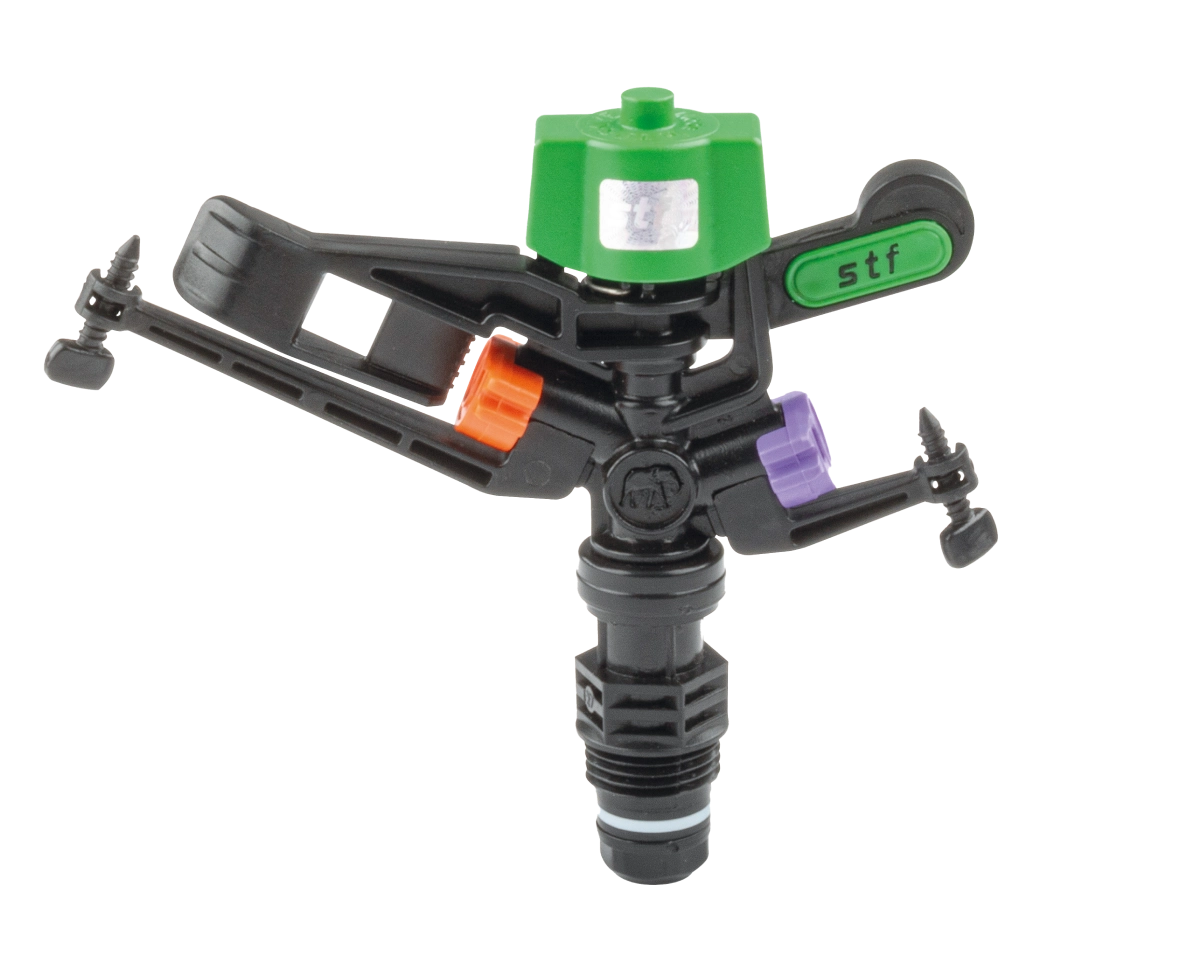

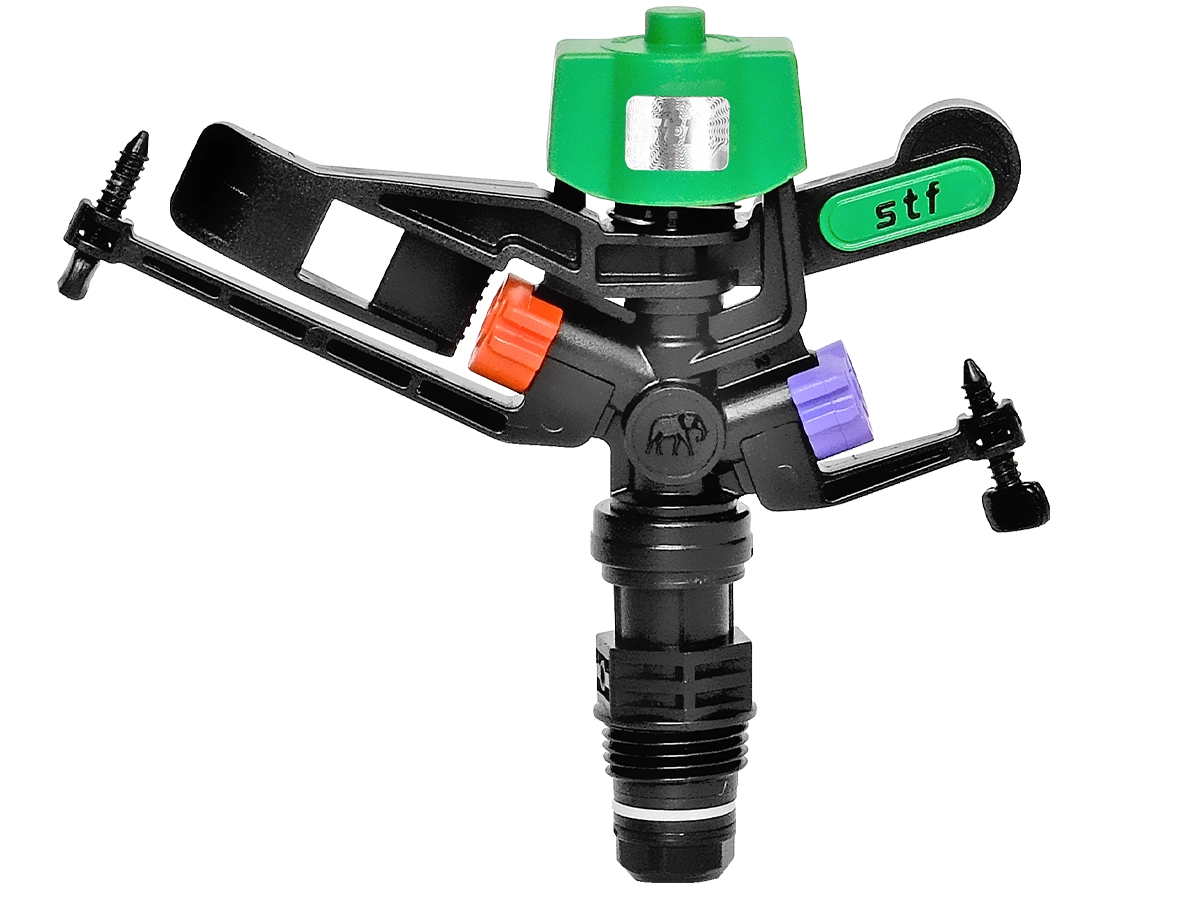

S10 K Sprinkler

For a Perfect Season

Thanks to its low flow rate, specially designed wing and nozzle structure, it prevents water accumulation and hard layer formation on the land surface.

Manufactured from plastic and stainless materials suitable for heavy outdoor conditions. High resistance to chemicals, UV rays and impact is provided.

S10 K is with you for years with its durable structure!

Technical Data

Thanks to its low flow rate, specially designed
wing and nozzle structure, it prevents water
accumulation and hard layer formation on
the land surface.

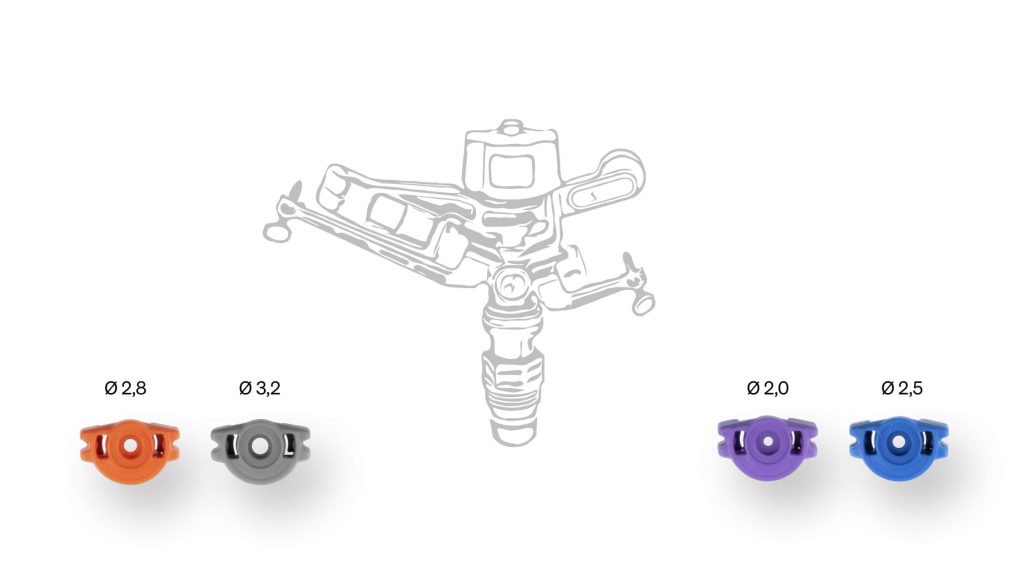

It offers ease of use in projects with different nozzle options.

Code	Nozzle Diameter (mm)	Andrage Flow Rate(L/H)			Box	Box Dimensions (W-D-H)
Code	Nozzle Diameter (mm)	2,5 Bar	3,0 Bar	3,5 Bar	Box	Box Dimensions (W-D-H)
S10-K-1	2,8 x 2,0	761	844	907	150	43 - 33 - 27
S10-K-2	3,2 x 2,0	917	1011	1084	150	43 - 33 - 27
S10-K-3	3,2 x 2,5	1042	1136	1230	150	43 - 33 - 27

Shapes Water, Gives Life to Soil!

The above data are for sprinkler breaker screws in full open position in a windless environment.
A homogeneous irrigation, the minimum working pressure in sprinklers should be 2.5 bar.

Application Range

Nozzle (mm)	Pressure (Bar)	Flow Rate (L/H)	Diameter (m)	AxB - (mm/h)
Nozzle (mm)	Pressure (Bar)	Flow Rate (L/H)	Diameter (m)	9x9	9x10	10x10	9x12	10x12	12x12
	2,5	1610	21	9,4	8,5	7,6	7,0	6,3	5,3
2,8 x 2,0	3,0	1752	22	10,4	9,4	8,4	7,8	7,0	5,9
	3,5	1902	23	11,2	10,1	9,1	8,4	7,6	6,3

	2,5	2158	21	11,3	10,2	9,2	8,5	7,6	6,4
3,2 x 2,0	3,0	2366	22	12,5	11,2	10,1	9,4	8,4	7,0
	3,5	2554	23	13,4	12,0	10,8	10,0	9,0	7,5

	2,5	2377	21	12,9	11,6	10,4	9,6	8,7	7,2
3,2 x 2,5	3,0	2606	22	14,0	12,6	11,4	10,5	9,5	7,9
	3,5	2814	23	15,2	13,7	12,3	11,4	10,3	8,5
