In-Line Filter

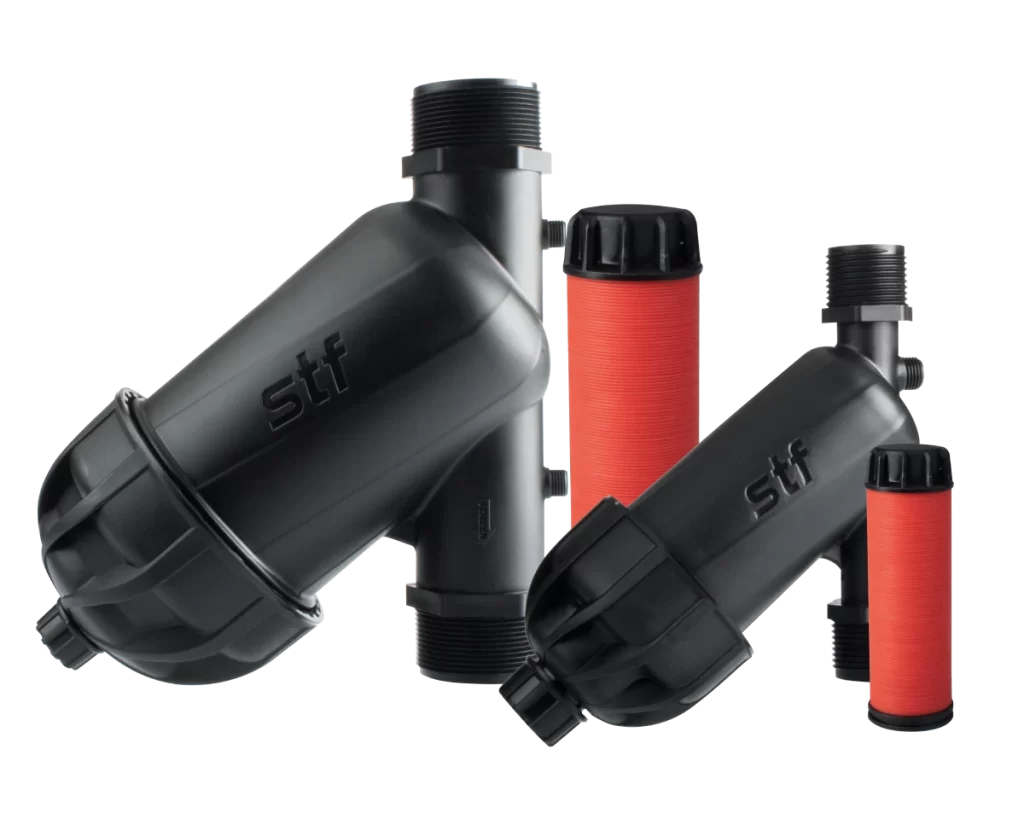

stf hat ici filtre STF

With Superior STF Quality

Thanks to the filter cartridge inside, it allows water to be filtered at the required micron level.

It has high resistance to UV rays, heat and pressure. Due to the materials used in its production, it is not affected by fertiliser and acid.

Product Brochure
Product Video
Product Images
minion STF

Extra pure, extra clean irrigation system

STF

Helix System

Technical Specifications

It has high resistance to UV rays, heat and pressure. Due to the materials used in its production, it is not affected by fertiliser and acid.

hat ici filtre detay STF

Technical Data

Code D
(inch)		 Connection Type Flow Rate(m³) Filtering
Surface
(cm²)		 A
(mm)		 B
(mm)		 C
(mm)		 Weight
(kg)		 Box
Box
Dimensions
(w-d-h)
110-10 1” Y-Y 8 184 166,7 82,5 170 0,31 20 43-33-27
110-11 ½" Y-Y 4 184 166,7 82,5 170 0,31 20 43-33-27
110-12 ¾" Y-Y 6 184 166,7 82,5 170 0,31 20 43-33-27
120-10 2” Y-Y 25 505 265 142 250 1,16 5 63-36-27
120-11 1 ½" Y-Y 18 505 265 142 250 1,16 5 63-36-27
120-12 1 ¼" Y-Y 16 505 265 142 250 1,16 5 63-36-27
minifiltre 2 STF

Packaging Dimensions

hatici ebat STF

Material Properties

Body Material

Polipropilen (Pp)

Maximum Operating Pressure

8 Bar

Minimum Operating Temperature

0 °C

Maximum Operating Temperature

60 °C

Straining Precision

130 Micron

Cartridge

Disk

Similar Products

Plastic Filter Manual

Plastic Filter Manual

Plastic Filter Back Flush Double

Plastic Filter Back Flush Double

Plastic Filter Backflush

Plastic Filter Backflush

Plastic Filter Manual

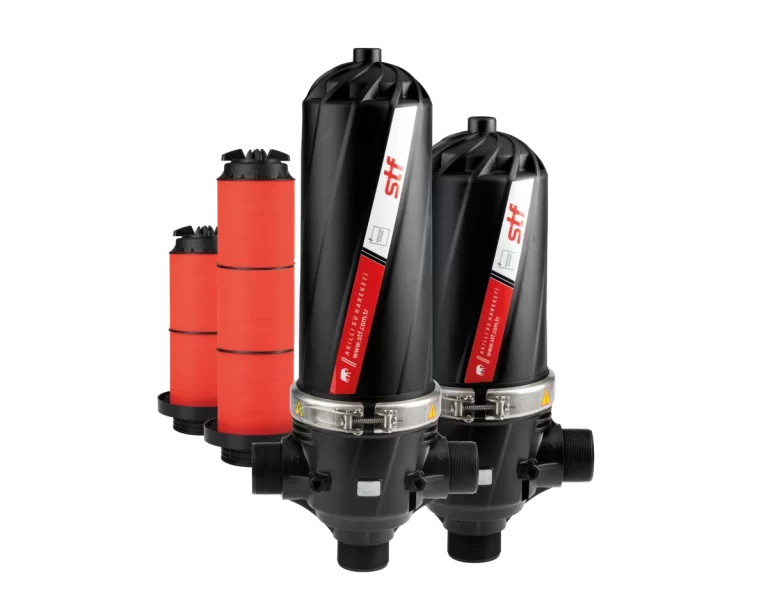

plastik filtre manuel STF

Protection Shield of Your Irrigation System

Thanks to the filter cartridge inside, it allows water to be filtered at the required micron level.

It has high resistance to UV rays, heat and pressure. Due to the materials used in its production, it is not affected by fertiliser and acid and does not rust.

Product Brochure
Product Video
Product Images
minion STF

Extra pure, extra clean irrigation system

STF

Helix System

Technical Specifications

Due to the materials used in its production, it is not affected by fertiliser and acid and does not rust.

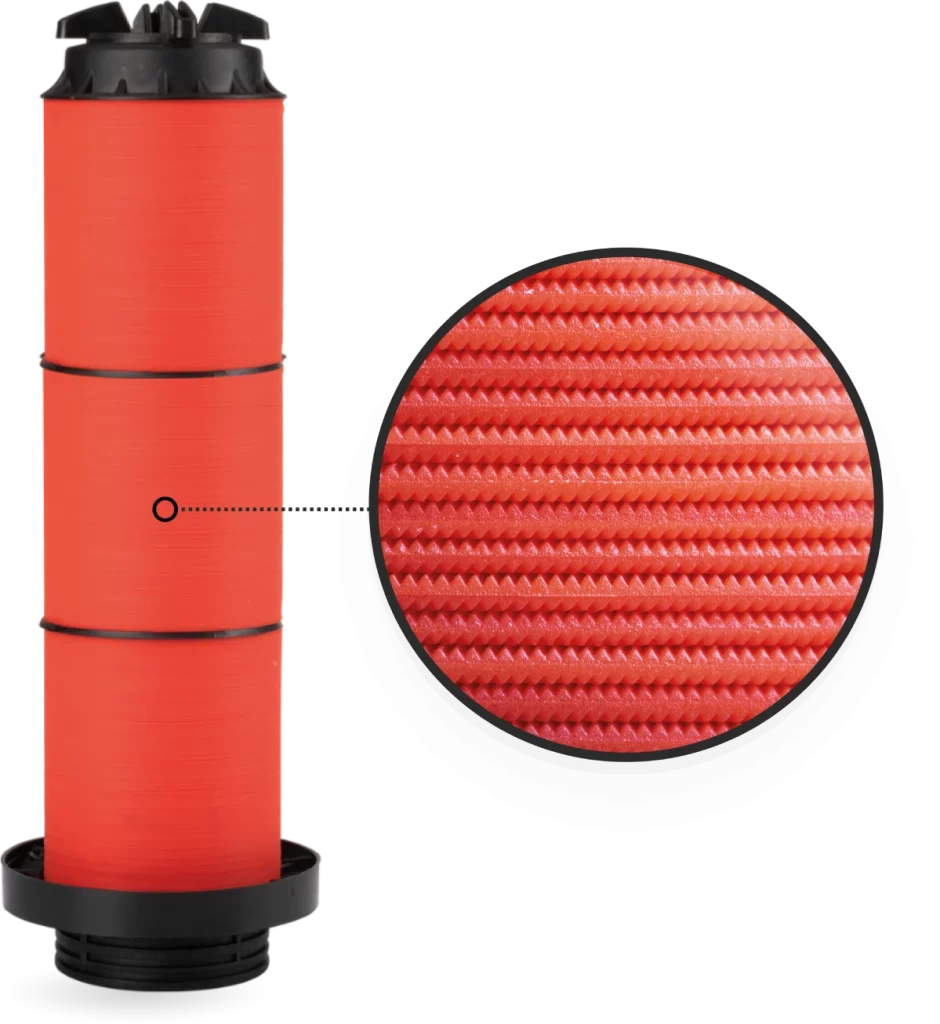

plastik filtre back flush detay 1 STF

Technical Data

D
(inch)		 Code Model Connection
Type		 Flow Rate
(m³)		 Filtering
Surface
(cm²)		 D
(mm)		 D1
(mm)		 H
(mm)		 H1
(mm)		 K
(mm)		 T
(inch)		 Weight
(kg)		 Box
Dimensions
(W-D-H)
2" 200-10 Normal Y-Y-Y 25 1225 59 205 625 356 311 ¾ 7.8 63-36 -27
200-11 Normal W-Y-W 25 1225 61 205 625 356 311 ¾ 7.8 63-36 -27
200-12 Normal W-W-Y 25 1225 61 205 625 356 311 ¾ 7.8 63-36 -27
200-13 Super Y-Y-Y 30 1750 59 205 755 481 311 ¾ 8.8 76-36-27
200-14 Super W-Y-W 30 1750 61 205 755 481 311 ¾ 8.8 76-36-27
200-15 Super W-W-Y 30 1750 61 205 755 481 311 ¾ 8.8 76-36-27
2½" 250-10 Normal Y-Y-Y 30 1225 74 205 640 356 337 ¾ 8.4 63-36 -27
250-11 Normal W-Y-W 30 1225 76 205 640 356 337 ¾ 8.4 63-36 -27
250-12 Normal W-W-Y 30 1225 76 205 640 356 337 ¾ 8.4 63-36 -27
250-13 Super Y-Y-Y 35 1750 74 205 750 481 337 ¾ 9.4 76-36-27
250-14 Super W-Y-W 35 1750 76 205 750 481 337 ¾ 9.4 76-36-27
250-15 Super W-W-Y 35 1750 76 205 750 481 337 ¾ 9.4 76-36-27
3" 300-10 Normal Y-Y-Y 40 1225 87 205 640 356 338 ¾ 8.1 63-36 -27
300-11 Normal W-Y-W 40 1225 89 205 640 356 338 ¾ 8.1 63-36 -27
300-12 Normal W-W-Y 40 1225 89 205 640 356 338 ¾ 8.1 63-36 -27
300-13 Super Y-Y-Y 45 1750 87 205 765 481 338 ¾ 9.1 76-36-27
300-14 Super W-Y-W 45 1750 89 205 765 481 338 ¾ 9.1 76-36-27
300-15 Super W-W-Y 45 1750 89 205 765 481 338 ¾ 9.1 76-36-27

Packaging Dimensions

hatici ebat STF

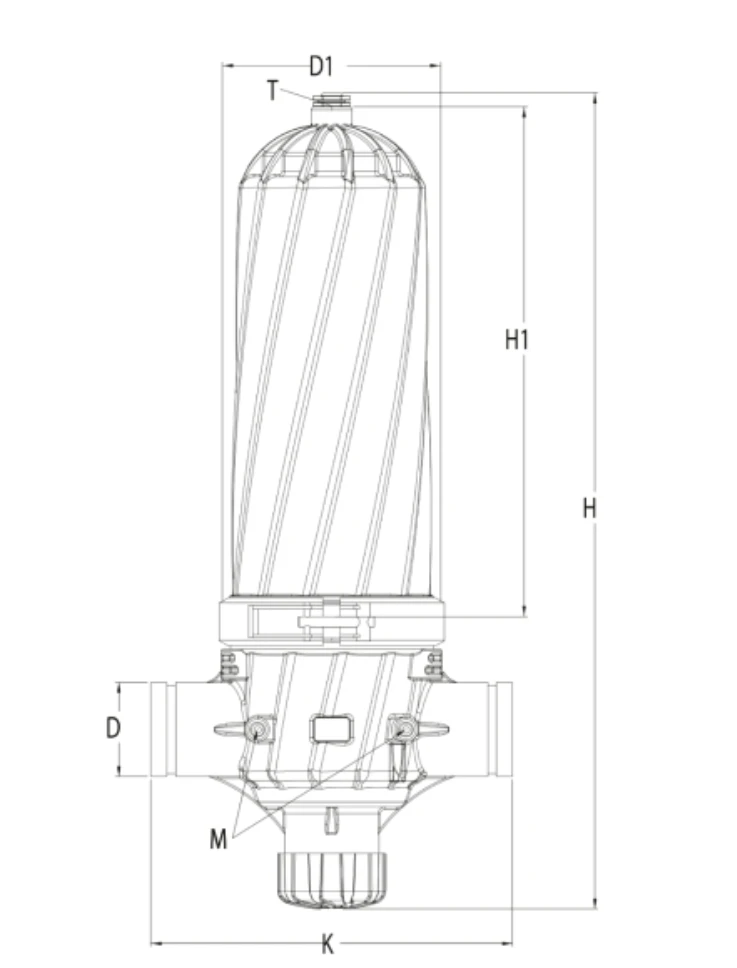

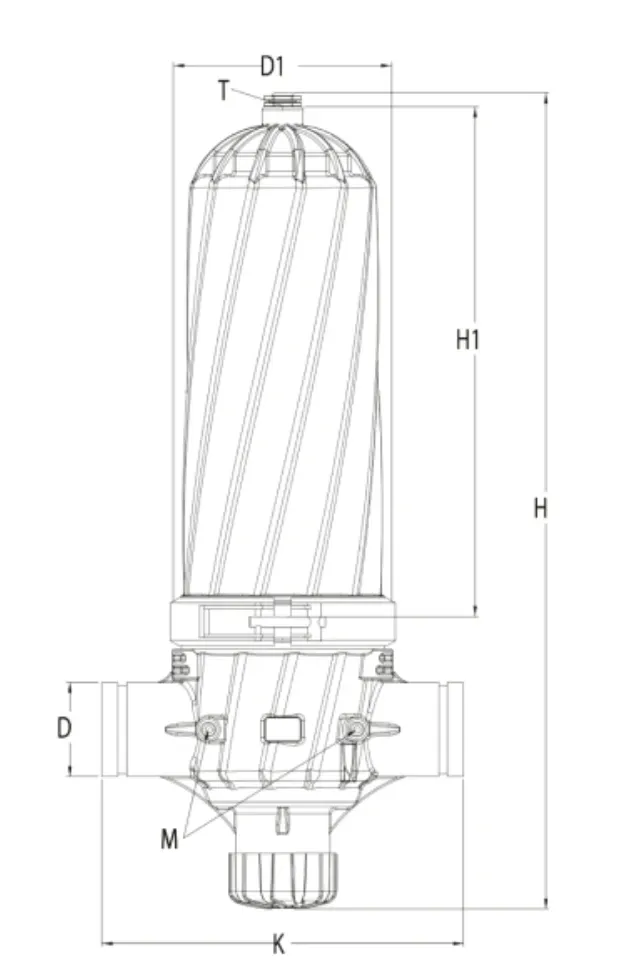

backflush 2 STF

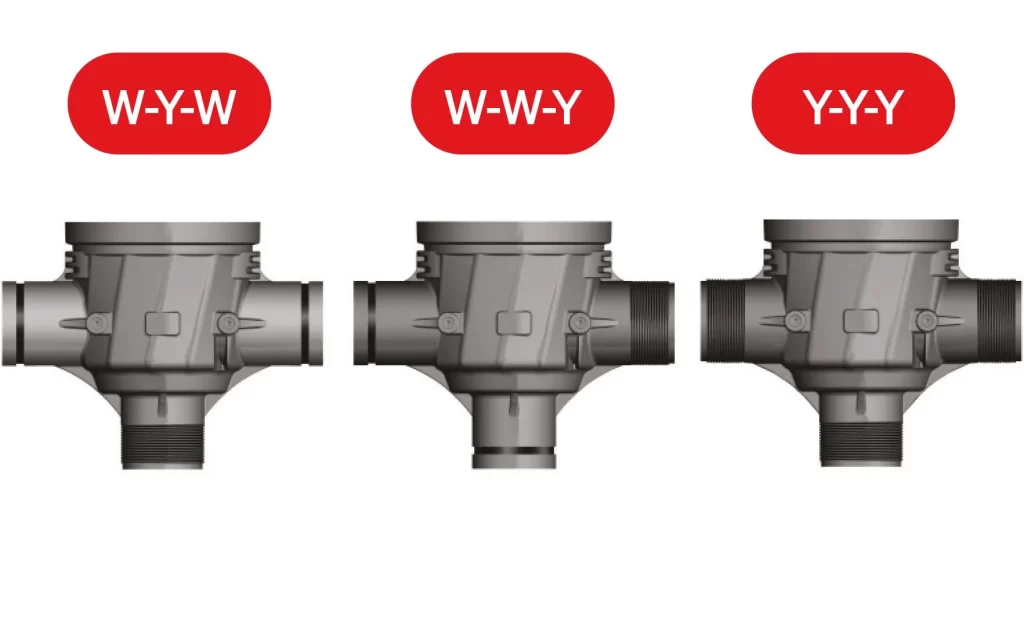

baglantitipi 1 1 STF
D
(inch)		 Code Model Connection
Type		 Flow Rate
(m³)		 Filtering
Surface
(cm²)		 D
(mm)		 D1
(mm)		 H
(mm)		 H1
(mm)		 K
(mm)		 T
(inch)		 Weight
(kg)		 Box
Dimensions
(W-D-H)
2" 200-10 Normal Y-Y-Y 25 1225 59 205 625 356 311 ¾" 7.8 63-36 -27
200-11 Normal W-Y-W 25 1225 61 205 625 356 311 ¾" 7.8 63-36 -27
200-12 Normal W-W-Y 25 1225 61 205 625 356 311 ¾" 7.8 63-36 -27
200-13 Super Y-Y-Y 30 1750 59 205 755 481 311 ¾" 8.8 76-36-27
200-14 Super W-Y-W 30 1750 61 205 755 481 311 ¾" 8.8 76-36-27
200-15 Super W-W-Y 30 1750 61 205 755 481 311 ¾" 8.8 76-36-27
2½" 250-10 Normal Y-Y-Y 30 1225 74 205 640 356 337 ¾" 8.4 63-36 -27
250-11 Normal W-Y-W 30 1225 76 205 640 356 337 ¾" 8.4 63-36 -27
250-12 Normal W-W-Y 30 1225 76 205 640 356 337 ¾" 8.4 63-36 -27
250-13 Super Y-Y-Y 35 1750 74 205 750 481 337 ¾" 9.4 76-36-27
250-14 Super W-Y-W 35 1750 76 205 750 481 337 ¾" 9.4 76-36-27
250-15 Super W-W-Y 35 1750 76 205 750 481 337 ¾" 9.4 76-36-27
3" 300-10 Normal Y-Y-Y 40 1225 87 205 640 356 338 ¾" 8.1 63-36 -27
300-11 Normal W-Y-W 40 1225 89 205 640 356 338 ¾" 8.1 63-36 -27
300-12 Normal W-W-Y 40 1225 89 205 640 356 338 ¾" 8.1 63-36 -27
300-13 Super Y-Y-Y 45 1750 87 205 765 481 338 ¾" 9.1 76-36-27
300-14 Super W-Y-W 45 1750 89 205 765 481 338 ¾" 9.1 76-36-27
300-15 Super W-W-Y 45 1750 89 205 765 481 338 ¾" 9.1 76-36-27

Packaging Dimensions

hatici ebat STF
baglantitipi 1 1 STF
backflush 2 STF

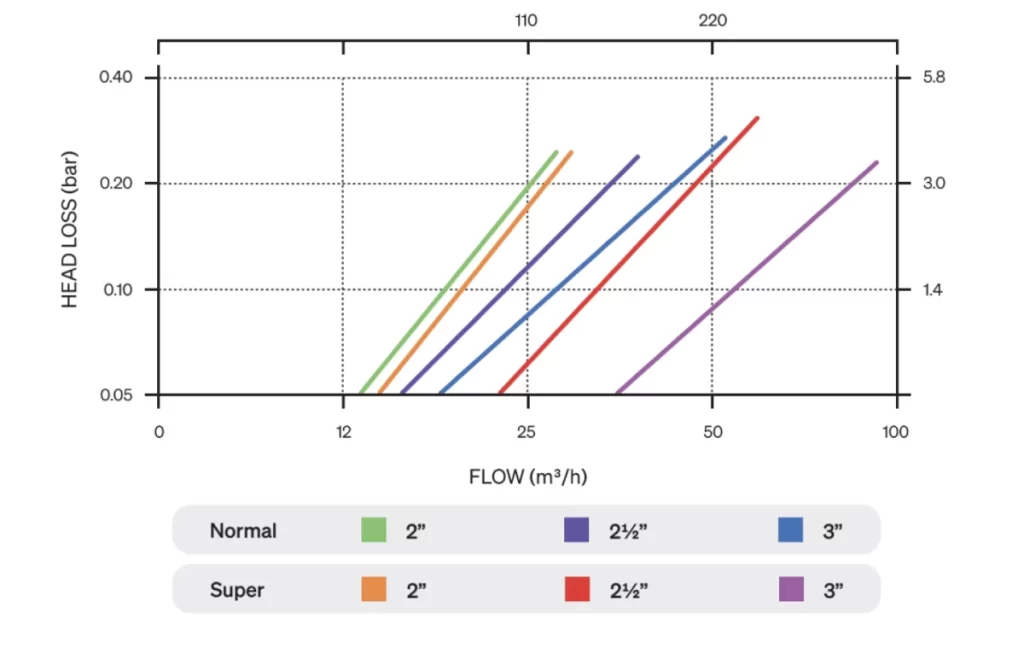

Head Loss Table

grafik 5 STF

Material Properties

Body construction

PA6

Max working pressure

8 Bar

Min working temperature

0 °C

Max working temperature

60 °C

Süzme hassasiyeti

130 Micron

Inner set

Disk

Similar Products

Inline Filters (mini filters)

Inline Filters (mini filters)

Plastic Filter Back Flush Double

Plastic Filter Back Flush Double

Plastic Filter Backflush

Plastic Filter Backflush

Plastic Filter Back Flush Double

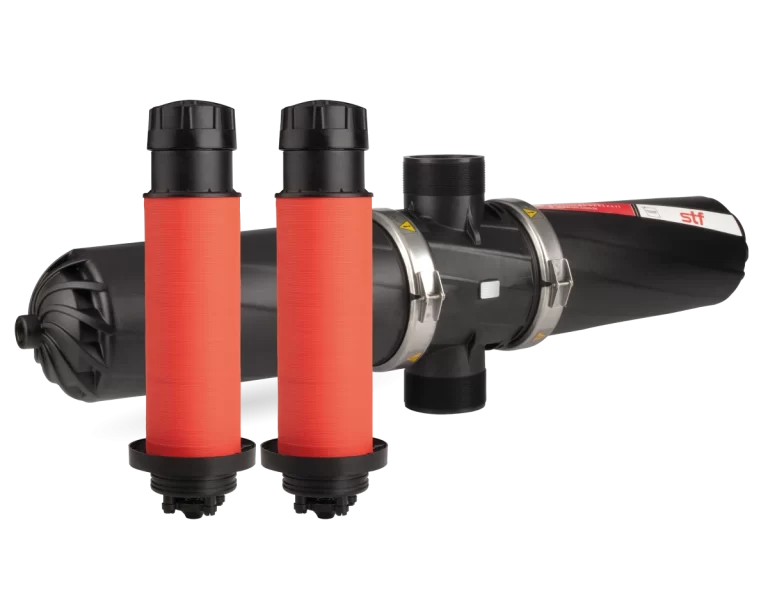

plastik filtre back flush ikiz STF

Twin Power, X2 Performance

Thanks to the filter cartridge inside, it allows water to be filtered at the required micron level.

It has high resistance to UV rays, heat and pressure. Due to the materials used in its production, it is not affected by fertiliser and acid and does not rust.

Product Brochure
Product Video
Product Images
minion STF

Extra pure, extra clean irrigation system

STF

Helix System

Technical Specifications

Thanks to the materials used in its production, high UV resistance and high resistance to pesticides, fertilizers and acids are provided.
plastik filtre back flush detay STF

Technical Data

D
(inch)		 Code Connection
Type		 Flow Rate
(m³)		 Filtering
Surface
(cm²)		 D
(mm)		 D1
(mm)		 H
(mm)		 H1
(mm)		 K
(mm)		 T
(inch)		 Weight
(kg)		 Box
Dimensions
(W-D-H)
3” 300-18-B Y-Y 50 2940 87 205 1210 481 340 ¾" 17,3 123-36-27
300-19-B W-W 50 2940 89 205 1210 481 340 ¾" 17,3 123-36-27
4” 400-12-B Y-Y 70 2940 113 205 1210 481 340 ¾" 17,0 123-36-27
400-13-B W-W 70 2940 114 205 1210 481 340 ¾" 17,0 123-36-27

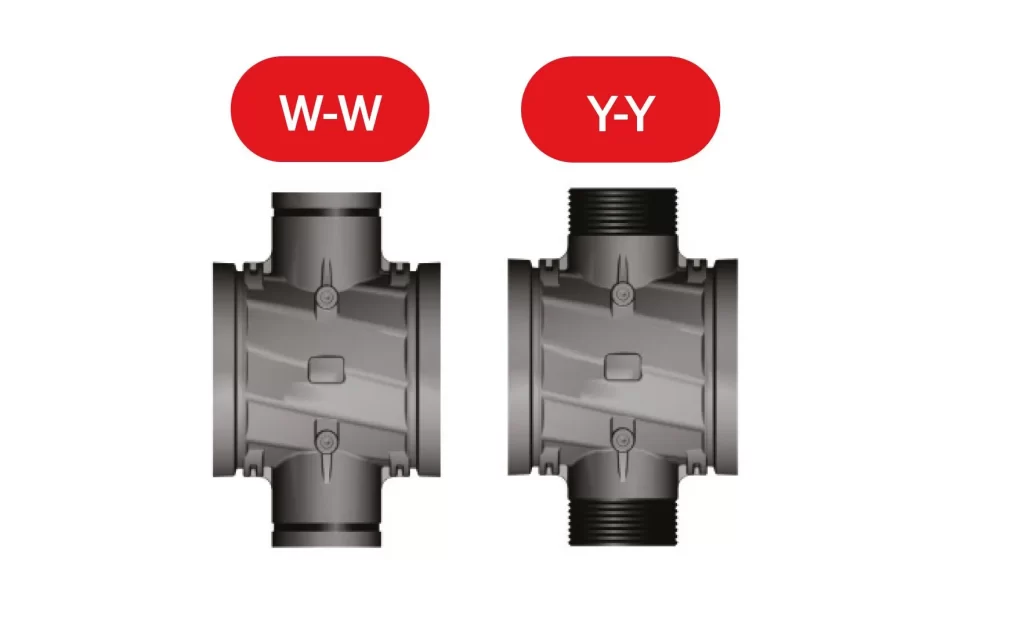

baglantitipi 2 STF

Packaging Dimensions

hatici ebat STF

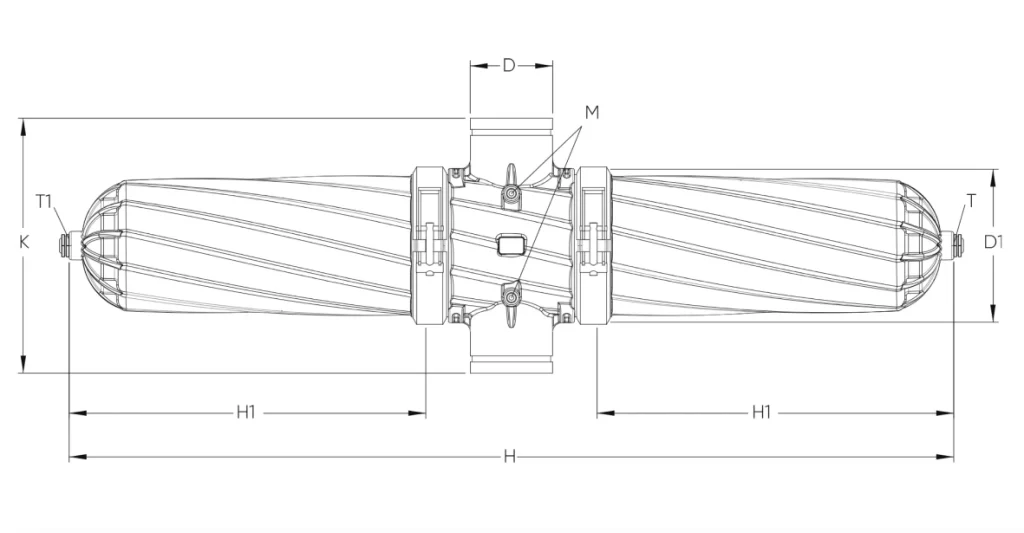

backflush ikiz STF

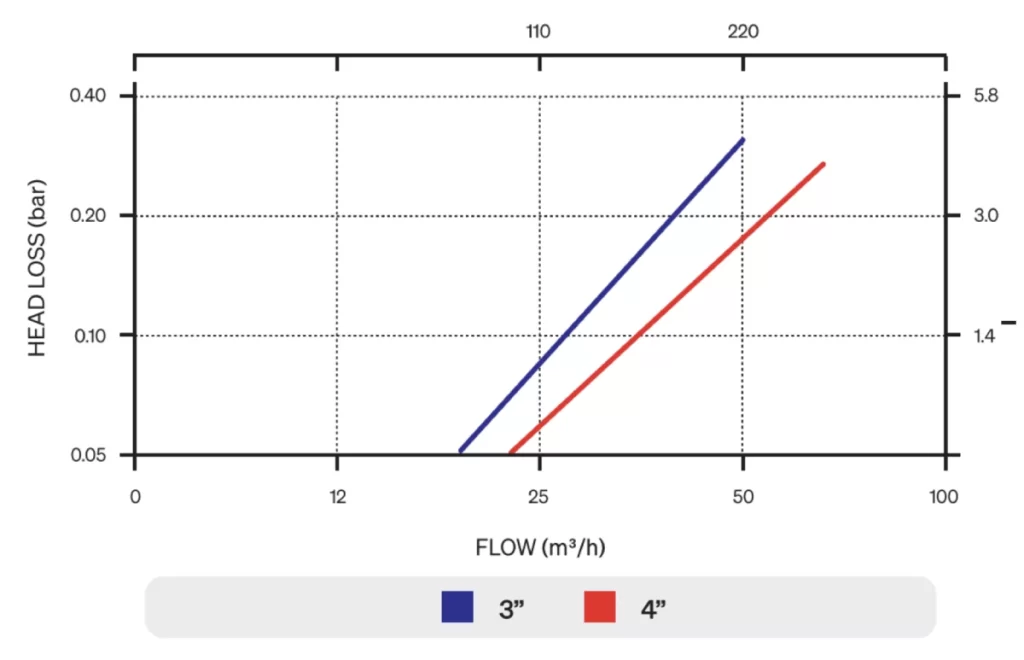

grafik STF

Material Properties

Body construction

PA 6

Max working pressure

8 Bar

Min working temperature

0 °C

Max working temperature

60 °C

Filtering

130 Micron

Inner set

Disk

Similar Products

Inline Filters (mini filters)

Inline Filters (mini filters)

Plastic Filter Manual

Plastic Filter Manual

Plastic Filter Backflush

Plastic Filter Backflush

Plastic Filter Backflush

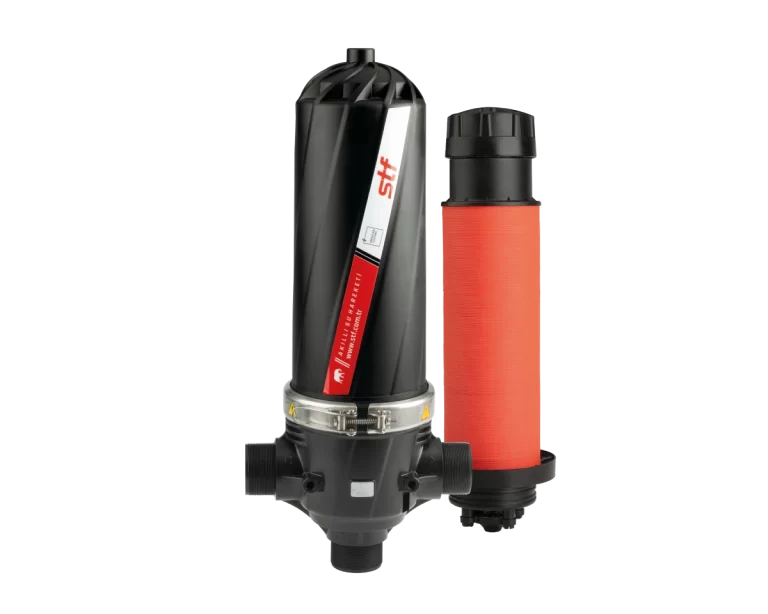

plastik filtre back flush STF

Maximum
Performance in Filtering

There is no need to disassemble and clean the filter inner assembly to remove contaminants between the disks.

Since the filter is cleaned at 100% rate, irrigation continues without interruption while the system is running, thus ensuring efficient irrigation.

Product Brochure
Product Video
Product Images
minion STF

Extra pure, extra clean irrigation system

STF

Helix System

Technical Specifications

Since the filter is cleaned at a rate of 100% while the system is running, irrigation continues uninterruptedly, thus providing efficient irrigation in waters with high pollutant content.

Since the filter cleaning time is short (10-20 seconds), the amount of water discharged during backwashing is very low.


Since the filter is cleaned 100%, the pressure loss in the system remains at a minimum level, preventing unnecessary energy costs.

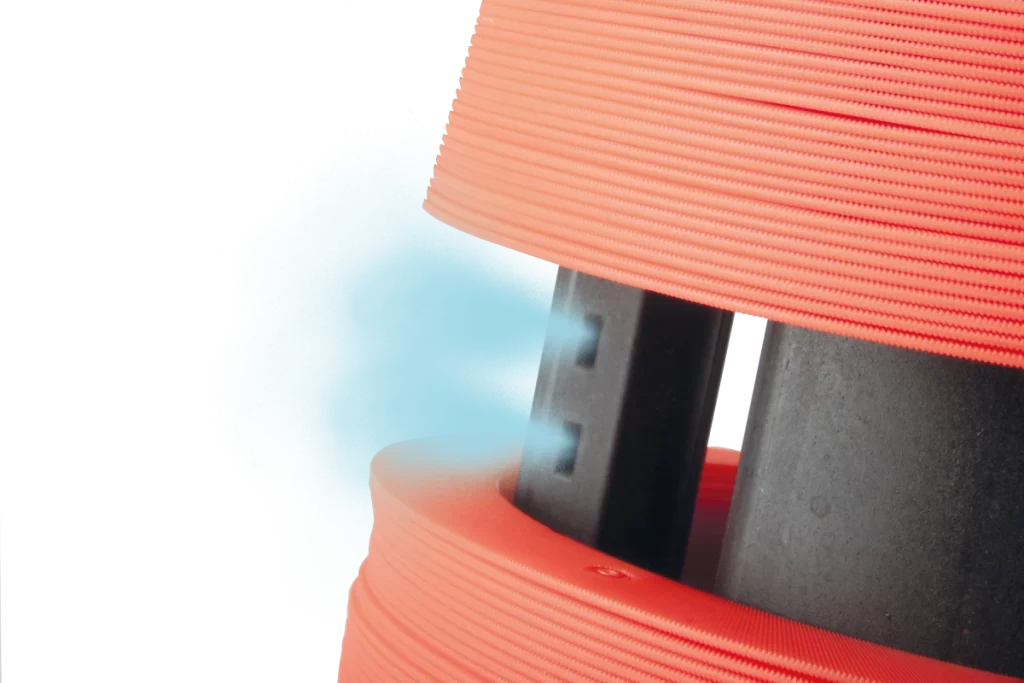

plastik filtre back flush detay STF

Technical Data

D
(inch)		 Code Connection
Type		 Flow Rate
(m³)		 Filtering
Surface
(cm²)		 D
(mm)		 D1
(mm)		 H
(mm)		 H1
(mm)		 K
(mm)		 T
(inch)		 Weight
(kg)		 Box
Dimensions
(W-D-H)
200-20 Y-Y-Y 25 1470 59 205 755 481 311 ¾" 9,5 76-36-27
2” 200-21 W-Y-W 25 1470 61 205 755 481 311 ¾" 9,5 76-36-27
200-22 W-W-Y 25 1470 61 205 755 481 311 ¾" 9,5 76-36-27
250-20 Y-Y-Y 30 1470 74 205 750 481 337 ¾" 10,0 76-36-27
2½” 250-21 W-Y-W 30 1470 76 205 750 481 337 ¾" 10,0 76-36-27
250-22 W-W-Y 30 1470 76 205 750 481 337 ¾" 10,0 76-36-27
300-20 Y-Y-Y 35 1470 87 205 765 481 340 ¾" 9,9 76-36-27
3” 300-21 W-Y-W 35 1470 89 205 765 481 340 ¾" 9,9 76-36-27
300-22 W-W-Y 35 1470 89 205 765 481 340 ¾" 9,9 76-36-27

Packaging Dimensions

hatici ebat STF
baglantitipi 1 1 STF
backflush 2 1 STF

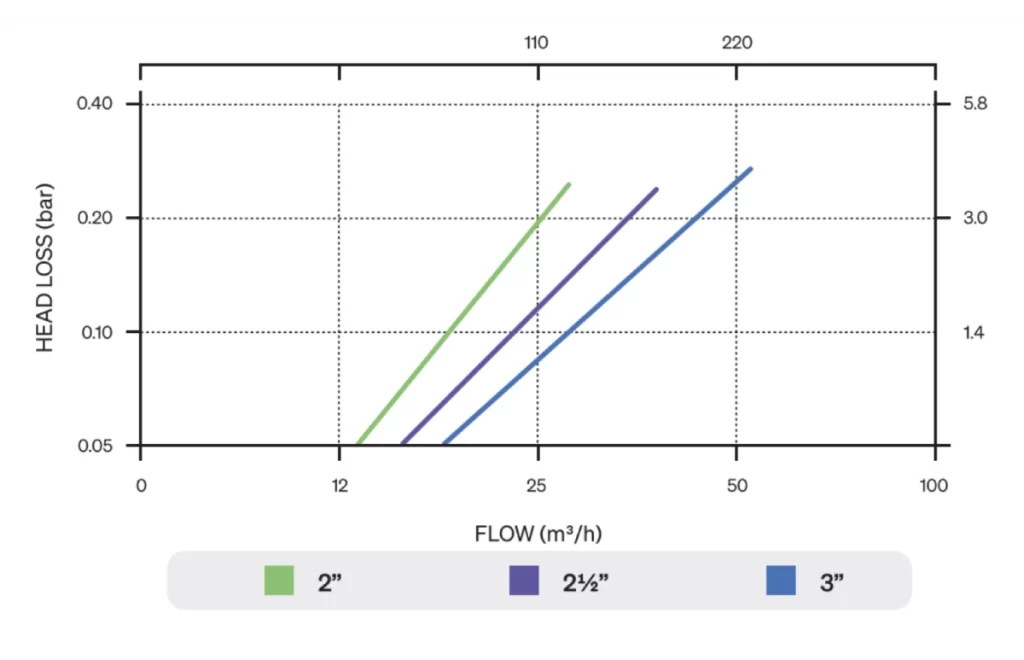

Head Loss Table

grafik 3 STF

Material Properties

Body construction

PA 6

Max working pressure

8 Bar

Min working temperature

0 °C

Max working temperature

60 °C

Filtering

130 Micron

Inner set

Disk

Similar Products

Inline Filters (mini filters)

Inline Filters (mini filters)

Plastic Filter Manual

Plastic Filter Manual

Plastic Filter Back Flush Double

Plastic Filter Back Flush Double
